FMCW Radar 104 - Freq estimator
Goal:
Compare apple to apple frequency estimators since Frequency estimation is key for distance measurement in FMCW radar
Summary:
method |
precision (% of 1 bin width) |
comment |
|---|---|---|
fft |
+/- 50% |
default |
padding |
-2% +0.5% |
at 100x padding, unrealistic |
quinn’s 2nd |
-1.25% +0.5% |
simple |
phase |
-0.2% +0.7% |
broken (need to compensate for \(s*\delta^2\) |
=> Assuming a range bin/ resolution of \(\frac{c}{2*B}\), a precision of 0.5% is equivalent to a precision of 0.2mm.
Next:
Compensate for \(s \cdot \delta^2\) phase shift in phase method.
History:
2022-Dec-17: fixed phase method and added summary values
2022-Dec-16: MRE code for each method to simplify comparisons
2022-Oct-13: added side by side comparison fft, padding, quinn’s 2nd and phase
??: creation
Further reading:
sources for phase method:
MRE for frequency bin error computation
[ ]:
from numpy import abs ,angle, arange, arcsin, cos, pi, sqrt, tan
import matplotlib.pyplot as plt
from scipy.fft import fft
def y_IF(f0_min, slope, T, antenna_tx, antenna_rx, target, v=3e8):
""" This function implements the mathematical IF defined in latex as
y_{IF} = cos(2 \pi [f_0\delta + s * \delta * t - s* \delta^2])
into following python code
y_IF = cos (2*pi*(f_0 * delta + slope * delta * T + slope * delta**2))
Parameters:
-----------
f0_min: float
the frequency at the begining of the chirp
slope: float
the slope with which the chirp frequency inceases over time
T: ndarray
the 1D vector containing time values
antenna_tx: tuple of floats
x, y, z coordinates
antenna_rx: tuple of floats
x, y, z coordinates
target: tuple of floats
x, y, z coordinates
v: float
speed of light in considered medium
Returns:
--------
YIF: ndarray
vector containing the IF values
"""
tx_x, tx_y, tx_z = antenna_tx
rx_x, rx_y, rx_z = antenna_rx
t_x, t_y, t_z = target
distance = sqrt((tx_x-t_x)**2 + (tx_y-t_y)**2 + (tx_z-t_z)**2)
distance += sqrt((rx_x-t_x)**2 + (rx_y-t_y)**2 + (rx_z-t_z)**2)
# delta = sqrt((A.x-target.x)**2+(A.y-target.y)**2+(A.z-target.z)**2)/3e8
delta = distance/v
YIF = cos(2 *pi *(f0_min * delta + slope * delta * T + slope * delta**2))
return YIF
f0_min = 60e9
c = 3e8
# lambda ~5mm at 60GHz
lambda0_max = 3e8/f0_min
n_rx = 2
Distance = 10
k = 10e12
n_samples = 512
f_if = 2*k*Distance/c
fs = 50e6
ts = 1/fs
antenna_tx = (-lambda0_max/2,0,0)
antenna_rx = (0,0,0)
T = arange(0, n_samples*ts+ts, ts)
errors = []
distances = arange(11, 12.4, 0.01)
for d in distances:
target = (0, d, 0)
f_if = 2*k*d/c
# sanity check
assert f_if < 1/ts/2
YIF = y_IF(f0_min, k, T, antenna_tx, antenna_rx, target)
FT = fft(YIF)
MAG = abs(FT)[0:int(n_samples/2)]
ANG = angle(FT)[0:int(n_samples/2)]
# now find the peak
amplitude_peak = sorted(MAG, reverse = True)[0]
i_peak = list(MAG).index(amplitude_peak)
f_peak = i_peak * fs / n_samples
d_calc = f_peak*c/2/k
bin_size = fs*c/2/k/n_samples
error = (d-d_calc)/bin_size
errors.append(error*100)
plt.title("distance error when only looking at frequency")
plt.ylabel("% error of distance bin")
plt.plot(distances,errors)
[<matplotlib.lines.Line2D at 0x7f0d32eaa7c0>]
MRE for Quinn’s second frequency estimation
[ ]:
from numpy import log,sqrt
from numpy import abs ,angle, arange, arcsin, cos, pi, sqrt, tan
import matplotlib.pyplot as plt
from scipy.fft import fft
def quinnsecond(FFT,k):
""" Provide frequency estimator via Quinn's second estimate
Parameters:
-----------
FFT:
k:
Returns:
--------
d:
Details:
--------
C code source: https://gist.github.com/hiromorozumi/f74fd4d5592a7f79028560cb2922d05f
out[k][0] ... real part of FFT output at bin k
out[k][1] ... imaginary part of FFT output at bin k
c++ code:
divider = pow(out[k][0], 2.0) + pow(out[k][1], 2.0);
ap = (out[k+1][0] * out[k][0] + out[k+1][1] * out[k][1]) / divider;
dp = -ap / (1.0 - ap);
am = (out[k-1][0] * out[k][0] + out[k-1][1] * out[k][1]) / divider;
dm = am / (1.0 - am);
d = (dp + dm) / 2 + tau(dp * dp) - tau(dm * dm);
"""
out = [[z.real, z.imag] for z in FFT]
def tau(x):
return 1/4* log(3*x**2 + 6*x + 1) - sqrt(6)/24 * log((x + 1 - sqrt(2/3)) / (x + 1 + sqrt(2/3)))
divider = out[k][0]**2.0+ out[k][1]**2
ap = (out[k+1][0] * out[k][0] + out[k+1][1] * out[k][1]) / divider
dp = -ap / (1.0 - ap)
am = (out[k-1][0] * out[k][0] + out[k-1][1] * out[k][1]) / divider
dm = am / (1.0 - am)
d = (dp + dm) / 2 + tau(dp * dp) - tau(dm * dm)
return d
def y_IF(f0_min, slope, T, antenna_tx, antenna_rx, target, v=3e8):
""" This function implements the mathematical IF defined in latex as
y_{IF} = cos(2 \pi [f_0\delta + s * \delta * t - s* \delta^2])
into following python code
y_IF = cos (2*pi*(f_0 * delta + slope * delta * T + slope * delta**2))
Parameters:
-----------
f0_min: float
the frequency at the begining of the chirp
slope: float
the slope with which the chirp frequency inceases over time
T: ndarray
the 1D vector containing time values
antenna_tx: tuple of floats
x, y, z coordinates
antenna_rx: tuple of floats
x, y, z coordinates
target: tuple of floats
x, y, z coordinates
v: float
speed of light in considered medium
Returns:
--------
YIF: ndarray
vector containing the IF values
"""
tx_x, tx_y, tx_z = antenna_tx
rx_x, rx_y, rx_z = antenna_rx
t_x, t_y, t_z = target
distance = sqrt((tx_x-t_x)**2 + (tx_y-t_y)**2 + (tx_z-t_z)**2)
distance += sqrt((rx_x-t_x)**2 + (rx_y-t_y)**2 + (rx_z-t_z)**2)
# delta = sqrt((A.x-target.x)**2+(A.y-target.y)**2+(A.z-target.z)**2)/3e8
delta = distance/v
YIF = cos(2 *pi *(f0_min * delta + slope * delta * T + slope * delta**2))
return YIF
f0_min = 60e9
c = 3e8
# lambda ~5mm at 60GHz
lambda0_max = 3e8/f0_min
n_rx = 2
Distance = 10
k = 10e12
n_samples = 512
f_if = 2*k*Distance/c
fs = 50e6
ts = 1/fs
antenna_tx = (-lambda0_max/2,0,0)
antenna_rx = (0,0,0)
T = arange(0, n_samples*ts+ts, ts)
errors = []
distances = arange(11, 12.4, 0.01)
for d in distances:
target = (0, d, 0)
f_if = 2*k*d/c
# sanity check
assert f_if < 1/ts/2
YIF = y_IF(f0_min, k, T, antenna_tx, antenna_rx, target)
FT = fft(YIF)
MAG = abs(FT)[0:int(n_samples/2)]
ANG = angle(FT)[0:int(n_samples/2)]
# now find the peak
amplitude_peak = sorted(MAG, reverse = True)[0]
i_peak = list(MAG).index(amplitude_peak)
delta_i = quinnsecond(FT, i_peak)
f1_estimate = fs*(i_peak+delta_i)/len(T)
d_calc = f1_estimate*c/2/k
bin_size = fs*c/2/k/n_samples
error = (d-d_calc)/bin_size
errors.append(error*100)
plt.title("error w/ Quinn's second")
plt.ylabel("% error of distance bin")
plt.plot(distances,errors)
[<matplotlib.lines.Line2D at 0x7f0d32f4aee0>]
MRE for Zero Padding
[ ]:
from numpy import abs ,angle, arange, arcsin, cos, pi, sqrt, tan
import matplotlib.pyplot as plt
from scipy.fft import fft
def y_IF(f0_min, slope, T, antenna_tx, antenna_rx, target, v=3e8):
""" This function implements the mathematical IF defined in latex as
y_{IF} = cos(2 \pi [f_0\delta + s * \delta * t - s* \delta^2])
into following python code
y_IF = cos (2*pi*(f_0 * delta + slope * delta * T + slope * delta**2))
Parameters:
-----------
f0_min: float
the frequency at the begining of the chirp
slope: float
the slope with which the chirp frequency inceases over time
T: ndarray
the 1D vector containing time values
antenna_tx: tuple of floats
x, y, z coordinates
antenna_rx: tuple of floats
x, y, z coordinates
target: tuple of floats
x, y, z coordinates
v: float
speed of light in considered medium
Returns:
--------
YIF: ndarray
vector containing the IF values
"""
tx_x, tx_y, tx_z = antenna_tx
rx_x, rx_y, rx_z = antenna_rx
t_x, t_y, t_z = target
distance = sqrt((tx_x-t_x)**2 + (tx_y-t_y)**2 + (tx_z-t_z)**2)
distance += sqrt((rx_x-t_x)**2 + (rx_y-t_y)**2 + (rx_z-t_z)**2)
# delta = sqrt((A.x-target.x)**2+(A.y-target.y)**2+(A.z-target.z)**2)/3e8
delta = distance/v
YIF = cos(2 *pi *(f0_min * delta + slope * delta * T + slope * delta**2))
return YIF
f0_min = 60e9
c = 3e8
# lambda ~5mm at 60GHz
lambda0_max = 3e8/f0_min
n_rx = 2
Distance = 10
k = 10e12
n_samples = 512
f_if = 2*k*Distance/c
fs = 50e6
ts = 1/fs
antenna_tx = (-lambda0_max/2,0,0)
antenna_rx = (0,0,0)
T = arange(0, n_samples*ts+ts, ts)
resize_factor = 100
n_samples_resized = n_samples * resize_factor
errors = []
distances = arange(11, 12.4, 0.1)
for d in distances:
target = (0, d, 0)
f_if = 2*k*d/c
# sanity check
assert f_if < 1/ts/2
YIF = y_IF(f0_min, k, T, antenna_tx, antenna_rx, target)
YIF.resize(n_samples_resized)
FT = fft(YIF)
MAG = abs(FT)[0:int(n_samples_resized/2)]
ANG = angle(FT)[0:int(n_samples_resized/2)]
# now find the peak
amplitude_peak = sorted(MAG, reverse = True)[0]
i_peak = list(MAG).index(amplitude_peak)
f_peak = i_peak * fs / n_samples_resized
d_calc = f_peak*c/2/k
bin_size = fs*c/2/k/n_samples
error = (d-d_calc)/bin_size
errors.append(error*100)
plt.title("distance error with 100x Zero Padding")
plt.ylabel("% error of distance bin")
plt.plot(distances,errors)
[<matplotlib.lines.Line2D at 0x7f0d32ee6730>]
[STRIKEOUT:MRE for PHASE to FREQ]
[ ]:
# / \
# / ! \ THIS CODE IS BROKEN/ BUGGED / DO NOT USE
# / ! \ the term # + slope * delta**2)) is commented out
#/ ! \ for real life usage this term needs to be compensated for
from numpy import abs ,angle, arange, arcsin, cos, pi, sqrt, tan
import matplotlib.pyplot as plt
from scipy.fft import fft
def y_IF(f0_min, slope, T, antenna_tx, antenna_rx, target, v=3e8):
""" This function implements the mathematical IF defined in latex as
y_{IF} = cos(2 \pi [f_0\delta + s * \delta * t - s* \delta^2])
into following python code
y_IF = cos (2*pi*(f_0 * delta + slope * delta * T + slope * delta**2))
Parameters:
-----------
f0_min: float
the frequency at the begining of the chirp
slope: float
the slope with which the chirp frequency inceases over time
T: ndarray
the 1D vector containing time values
antenna_tx: tuple of floats
x, y, z coordinates
antenna_rx: tuple of floats
x, y, z coordinates
target: tuple of floats
x, y, z coordinates
v: float
speed of light in considered medium
Returns:
--------
YIF: ndarray
vector containing the IF values
"""
tx_x, tx_y, tx_z = antenna_tx
rx_x, rx_y, rx_z = antenna_rx
t_x, t_y, t_z = target
distance = sqrt((tx_x-t_x)**2 + (tx_y-t_y)**2 + (tx_z-t_z)**2)
distance += sqrt((rx_x-t_x)**2 + (rx_y-t_y)**2 + (rx_z-t_z)**2)
delta = distance/v
YIF = cos(2 *pi *(f0_min * delta + slope * delta * T)) # + slope * delta**2))
return YIF
f0_min = 60e9
c = 3e8
# lambda ~5mm at 60GHz
lambda0_max = 3e8/f0_min
n_rx = 2
Distance = 10
k = 10e12
n_samples = 512
f_if = 2*k*Distance/c
fs = 50e6
ts = 1/fs
antenna_tx = (-lambda0_max/2,0,0)
antenna_rx = (0,0,0)
T = arange(0, n_samples*ts, ts)
print("len_T",len(T))
ns = n_samples//2
errors = []
phis = []
distances = arange(10, 14, 0.01)
for d in distances:
target = (0, d, 0)
f_if = 2*k*d/c
# sanity check
assert f_if < 1/ts/2
YIF = y_IF(f0_min, k, T, antenna_tx, antenna_rx, target)
FT = fft(YIF)
MAG = abs(FT)[0:int(n_samples/2)]
ANG = angle(FT)[0:int(n_samples/2)]
# now find the peak
amplitude_peak = sorted(MAG, reverse = True)[0]
i_peak = list(MAG).index(amplitude_peak)
# $$ \epsilon = \frac{\phi}{\pi}*\frac{N}{N-1} $$
phi = ANG[i_peak]/pi
epsilon = (phi)*(n_samples)/(n_samples-1) # *0.96 why does 0.96 seems to improve it ?!?
# epsilon = 0
f0_estimate = fs*(i_peak)/n_samples +fs*phi/(n_samples)
# fft_bin_size = fs/n_samples
# f_error = (f_if-f0_estimate)/fft_bin_size
d_calc = f0_estimate*c/2/k
d_error = d - d_calc
bin_size = fs*c/2/k/n_samples
error = (d-d_calc)/bin_size
errors.append(error * 100)
plt.title("error w/ bin phase -- warning missing s*delta^2")
plt.plot(distances,errors)
plt.ylabel("% error of distance bin")
len_T 512
Text(0, 0.5, '% error of distance bin')
BACK-UP
Not checked / not verified beyond this point
DFT PHASE vs FREQ in 1 bin (from maths)
source: https://flylib.com/books/en/2.729.1/the_dft_frequency_response_to_a_complex_input.html
\[X_c(m) = e^{j[\pi \cdot (k-m) - \pi \cdot \frac{k-m}{N}]} \cdot \frac{sin(\pi \cdot (k-m))}{sin(\pi \cdot \frac{k-m}{N})}\]
so
\[\phi = \pi \cdot (k-m) - \pi \cdot \frac{k-m}{N}\]
\[\frac{\phi}{\pi} = (k-m) \cdot \frac{N-1}{N}\]
\[\epsilon = \frac{\phi}{\pi}*\frac{N}{N-1}\]
[ ]:
from numpy.fft import fft, ifft,fftfreq
from numpy import abs, angle, arange, dot, exp, sin, pi
import matplotlib.pyplot as plt
from numpy import exp
def DFT_new(x):
"""
Function to calculate the
discrete Fourier Transform
of a 1D real-valued signal x
"""
N = len(x)
n = arange(N)
k = n.reshape((N, 1))
e = exp(-2j * pi * k * n / N)
X = dot(e, x)
return X
def dft_resp(k,m,N):
""" function to provide the DFT response from the explicit formula from book
"""
if k==m:
return N,0
#dft = exp(1j*pi*((k-m)-(k-m)/N))*sin(pi*(k-m))/sin(pi*(k-m)/N)
val = exp(1j*pi*((k-m)-(k-m)/N))*sin(pi*(k-m))/sin(pi*(k-m)/N)
return abs(val),angle(val)
def plot_phase(N=1024):
k=100
phases = []
offsets = range(1000)
ms = []
for offset in offsets:
m=k+offset/1e3
_, phase = dft_resp(k,m,N)
phases.append(phase)
ms.append(m)
plt.title("phase variation inside one bin (simulated)")
plt.plot(ms,phases,'b')
plt.xlabel('m')
plt.ylabel('phase')
plot_phase()
DFT PHASE vs FREQ in 1 bin (from FFT)
[ ]:
# phase measurement with FFT
n_fft = 2000 #FFT points
fs= 2000 #sampling frequency
phases = []
fos = []
for fo in range(1,1000):
f0 = 500.5+fo/1000 #signal frequency
assert fs > 2*f0
T = arange(0,n_fft/fs,1/fs)
Y = sin(2*pi*f0*T+pi/2)
FFT = fft(Y)
MAG = abs(FFT)
PHASE = angle(FFT)
n_fft_points = int(len(MAG)/2)
MAG = MAG[0:n_fft_points]
PHASE = PHASE[0:n_fft_points]
Npeaks=1
sorted_magnitude = sorted(MAG,reverse = True)
sorted_magnitude = sorted_magnitude[:Npeaks][0]
fpeak = list(MAG).index(sorted_magnitude) #for peak in sorted_magnitude][0]
fp = MAG[fpeak]
ph_p = PHASE[fpeak]/pi
phases.append(ph_p)
fos.append(f0)
print("done")

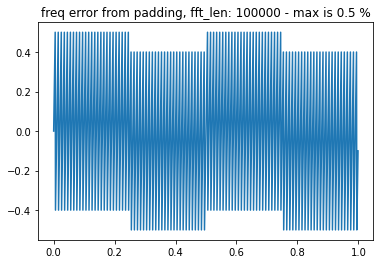

plt.title("phase measured from FFT")
plt.plot(fos,phases)
done
[<matplotlib.lines.Line2D at 0x7f238e8a4390>]
FREQ from PHASE
checking interpolation from phase to freq - seems to work down to 0.003mm
[ ]:
#from v0.3 but backward: freq from phase
#freq accuracy at 2000 points ~ 1/1000th better than FFT
#FFT gives 3cm, phase gives <-> 0.003mm
fs = 2000
ts = 1.0/fs
t_max = 1
T = arange(0,t_max,ts)
f0 = 500.5
n_increments=8000
phases = []
f1s = []
Xs = []
Ys = []
#for f1 in [200.6,200.55,200.732,200.8855]:
#for f1o in [.1,.05,.232,.3855]:
for f1o in arange(0,1,0.05):
f1=f0+f1o
Y=sin(2*pi*f1*T)
FFT = fft(Y)
MAG = abs(FFT)
ANG = angle(FFT)
n_fft_points = int(len(MAG)/2)
MAG = MAG[0:n_fft_points]
ANG = ANG[0:n_fft_points]
Npeaks=1
sorted_magnitude = sorted(MAG,reverse = True)
sorted_magnitude = sorted_magnitude[:Npeaks][0]
fpeak = list(MAG).index(sorted_magnitude)
ph_peak = ANG[fpeak]
epsilon_estimate = (ph_peak+pi)/(pi*(1-1/n_increments)) #+pi*()
f1_estimate = f0+epsilon_estimate
Xs.append(f1o)
Ys.append((f1-f1_estimate)*100)
max_error = max(abs(Ys))

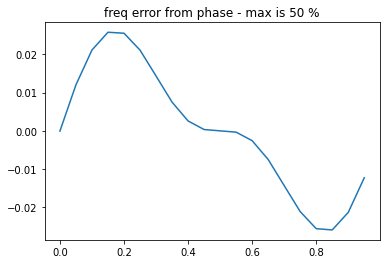

plt.title(f"freq error from phase - max is {max_error:.2g} %")
plt.plot(Xs, Ys)
plt.show()
Back-up #2
prep and research code (back-up)
Quinn’s second order
[ ]:
from numpy import log,sqrt
def quinnsecond(FFT,k):
""" Provide frequency estimator via Quinn's second estimate
Parameters:
-----------
FFT:
k:
Returns:
--------
d:
Details:
--------
C code source: https://gist.github.com/hiromorozumi/f74fd4d5592a7f79028560cb2922d05f
out[k][0] ... real part of FFT output at bin k
out[k][1] ... imaginary part of FFT output at bin k
c++ code:
divider = pow(out[k][0], 2.0) + pow(out[k][1], 2.0);
ap = (out[k+1][0] * out[k][0] + out[k+1][1] * out[k][1]) / divider;
dp = -ap / (1.0 - ap);
am = (out[k-1][0] * out[k][0] + out[k-1][1] * out[k][1]) / divider;
dm = am / (1.0 - am);
d = (dp + dm) / 2 + tau(dp * dp) - tau(dm * dm);
"""
out = [[z.real, z.imag] for z in FFT]
def tau(x):
return 1/4* log(3*x**2 + 6*x + 1) - sqrt(6)/24 * log((x + 1 - sqrt(2/3)) / (x + 1 + sqrt(2/3)))
divider = out[k][0]**2.0+ out[k][1]**2
ap = (out[k+1][0] * out[k][0] + out[k+1][1] * out[k][1]) / divider
dp = -ap / (1.0 - ap)
am = (out[k-1][0] * out[k][0] + out[k-1][1] * out[k][1]) / divider
dm = am / (1.0 - am)
d = (dp + dm) / 2 + tau(dp * dp) - tau(dm * dm)
return d
[ ]:
fs = 2000
ts = 1.0/fs
t_max = 1
T = arange(0,t_max,ts)
f0 = 500.5
n_increments=8000
phases = []
f1s = []
Xq = []
Yq = []
fft_size = len(T)
#for f1 in [200.6,200.55,200.732,200.8855]:
#for f1o in [.1,.05,.232,.3855]:
for f1o in arange(0,1,0.05):
f1=f0+f1o
Y=sin(2*pi*f1*T)
FFT = fft(Y)
MAG = abs(FFT)
ANG = angle(FFT)
n_fft_points = int(len(MAG)/2)
MAG = MAG[0:n_fft_points]
ANG = ANG[0:n_fft_points]
Npeaks=1
sorted_magnitude = sorted(MAG,reverse = True)
sorted_magnitude = sorted_magnitude[:Npeaks][0]
fpeak = list(MAG).index(sorted_magnitude)
ph_peak = ANG[fpeak]
#epsilon_estimate = (ph_peak+pi)/(pi*(1-1/n_increments)) #+pi*()
#f1_estimate = f0+epsilon_estimate
d = quinnsecond(FFT,fpeak)
f1_estimate = 1/ts*(fpeak+d)/fft_size
Xq.append(f1o)
Yq.append((f1-f1_estimate)*100)
max_error = max(abs(Yq))
plt.title(f"freq error from quinn's 2d - max is {max_error:.2g} %")
plt.plot(Xq, Yq)
plt.show()
PHASE to FREQ
[ ]:
#from v0.3 but backward: freq from phase
#freq accuracy at 2000 points ~ 1/1000th better than FFT
#FFT gives 3cm, phase gives <-> 0.003mm
fs = 2000
ts = 1.0/fs
t_max = 1
T = arange(0,t_max,ts)
f0 = 500.5
n_increments=8000
phases = []
f1s = []
Xfs = []
Yfs = []
#for f1 in [200.6,200.55,200.732,200.8855]:
#for f1o in [.1,.05,.232,.3855]:
for f1o in arange(0,1,0.05):
f1=f0+f1o
Y=sin(2*pi*f1*T)
FFT = fft(Y)
MAG = abs(FFT)
ANG = angle(FFT)
n_fft_points = int(len(MAG)/2)
MAG = MAG[0:n_fft_points]
ANG = ANG[0:n_fft_points]
Npeaks=1
sorted_magnitude = sorted(MAG,reverse = True)
sorted_magnitude = sorted_magnitude[:Npeaks][0]
fpeak = list(MAG).index(sorted_magnitude)
ph_peak = ANG[fpeak]
epsilon_estimate = (ph_peak+pi)/(pi*(1-1/n_increments)) #+pi*()
f1_estimate = f0+epsilon_estimate
Xfs.append(f1o)
Yfs.append((f1-f1_estimate)*100)
max_error = max(abs(Yfs))
plt.title(f"freq error from phase - max is {max_error:.2g} %")
plt.plot(Xs, Ys)
plt.show()
no code
[ ]:
#from v0.3 but backward: freq from phase
#freq accuracy at 2000 points ~ 1/1000th better than FFT
#FFT gives 3cm, phase gives <-> 0.003mm
fs = 2000
ts = 1.0/fs
t_max = 1
T = arange(0,t_max,ts)
f0 = 500.5
n_increments=8000
phases = []
f1s = []
Xzs = []
Yzs = []
#for f1 in [200.6,200.55,200.732,200.8855]:
#for f1o in [.1,.05,.232,.3855]:
for f1o in arange(0,1,0.05):
f1=f0+f1o
Y=sin(2*pi*f1*T)
FFT = fft(Y)
MAG = abs(FFT)
ANG = angle(FFT)
n_fft_points = int(len(MAG)/2)
MAG = MAG[0:n_fft_points]
ANG = ANG[0:n_fft_points]
Npeaks=1
sorted_magnitude = sorted(MAG,reverse = True)
sorted_magnitude = sorted_magnitude[:Npeaks][0]
fpeak = list(MAG).index(sorted_magnitude)
ph_peak = ANG[fpeak]
f1_estimate = fpeak
Xzs.append(f1o)
Yzs.append((f1-f1_estimate)*100)
max_error = max(abs(Yzs))
plt.title(f"freq error from phase - max is {max_error:.2g} %")
plt.plot(Xs, Ys)
plt.show()
zero padding
[ ]:
#from v0.3 but backward: freq from phase
#freq accuracy at 2000 points ~ 1/1000th better than FFT
#FFT gives 3cm, phase gives <-> 0.003mm
fs = 2000
ts = 1.0/fs
t_max = 1
T = arange(0,t_max,ts)
f0 = 500.5
n_increments=8000
phases = []
f1s = []
Xpas = []
Ypas = []
resize = 100 #100
#for f1 in [200.6,200.55,200.732,200.8855]:
#for f1o in [.1,.05,.232,.3855]:
for f1o in arange(0,1,0.001):
f1=f0+f1o
X = sin(2*pi*f1*T)
X.resize(fs*resize)
FFT = fft(X)
#FFT = DFT_new(X)
MAG = abs(FFT)
PHASE = angle(FFT)
n_fft_points = int(len(MAG)/2)
MAG = MAG[0:n_fft_points]
PHASE = PHASE[0:n_fft_points]
Npeaks=1
sorted_magnitude = sorted(MAG,reverse = True)
sorted_magnitude = sorted_magnitude[:Npeaks][0]
fpeak = list(MAG).index(sorted_magnitude) #for peak in sorted_magnitude][0]
f1_estimate = fpeak/resize
ph_p = PHASE[fpeak]/pi
Xpas.append(f1o)
Ypas.append((f1-f1_estimate)*100)
max_error = max(abs(Ypas))
plt.title(f"freq error from padding, fft_len: {n_fft_points} - max is {max_error:.2g} %")
plt.plot(Xpas, Ypas)
plt.show()
OLD and crap from here
v0.3 interpolation of f1 from phase
[ ]:
fs = 1000
ts = 1.0/fs
t_max = 1
T = arange(0,t_max,ts)
f0 = 200.5
n_increments=2000
phases = []
f1s = []
for f1_offset in range(1,n_increments+1):
epsilon = f1_offset/n_increments
f1 = f0+epsilon
assert fs>f1*2
Y=sin(2*pi*f1*T)
FFT = fft(Y)
MAG = abs(FFT)
ANG = angle(FFT)
n_fft_points = int(len(MAG)/2)
MAG = MAG[0:n_fft_points]
ANG = ANG[0:n_fft_points]
Npeaks=1
sorted_magnitude = sorted(MAG,reverse = True)
sorted_magnitude = sorted_magnitude[:Npeaks][0]
fpeak = list(MAG).index(sorted_magnitude)
ph_peak = ANG[fpeak]
f1s.append(f1)
phases.append(ph_peak+pi+epsilon*pi*(-1+1/n_increments)) #+pi*()
plt.title("phases")
plt.plot(f1s[2:],phases[2:])
plt.show()
v0.2 - check validity of dft_resp
seems that :
dft_resp accuracy increases as f1 increases
not really impacted by fs
[ ]:
# sampling rate
fs = 200 #(2kHz)
# sampling interval
ts = 1.0/fs
Tmax = 1
T = arange(0,Tmax,ts) #Time vector
ns = int(len(T)) #number samples
Freqs = arange(0,fs,fs/ns)
exponent=2
fpeaks=[]
FFT, MAG, PHASE = None, None, None
for f1 in [50.1]:
#f1 = 5.1
X = sin(2*pi*f1*T)
FFT = fft(X)
#FFT = DFT_new(X)
MAG = abs(FFT)
PHASE = angle(FFT)
n_fft_points = int(len(MAG)/2)
MAG = MAG[0:n_fft_points]
PHASE = PHASE[0:n_fft_points]
Npeaks=1
sorted_magnitude = sorted(MAG,reverse = True)
sorted_magnitude = sorted_magnitude[:Npeaks][0]
fpeak = list(MAG).index(sorted_magnitude) #for peak in sorted_magnitude][0]
fp = MAG[fpeak]
ph_p = PHASE[fpeak]/pi
fpeaks.append(fp)
print("FFT len",len(MAG))
print("Peak at:",fpeak)
bin0=fpeak
theo_mag,theo_ang=dft_resp(bin0,f1,n_fft_points)
error = (abs(MAG[bin0])-abs(theo_mag))/abs(theo_mag)
print(f"MAG-5 delta {error*100:.2g} %")
bin1=fpeak+1
theo_mag,theo_ang=dft_resp(bin1,f1,n_fft_points)
error = (abs(MAG[bin1])-abs(theo_mag))/abs(theo_mag)
print(f"MAG-6 delta {error*100:.2g} %")
print(Freqs[-1])

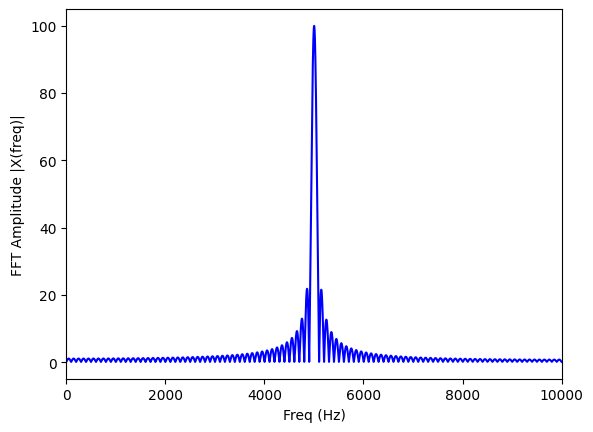

plt.plot(Freqs[:n_fft_points],MAG,'b')
plt.xlabel('Freq (Hz)')
plt.ylabel('FFT Amplitude |X(freq)|')
plt.xlim(0,fpeak*2)
plt.show()
FFT len 100
Peak at: 50
MAG-5 delta -0.092 %
MAG-6 delta 0.82 %
199.0
[ ]:
from numpy.fft import fft, ifft
# sampling rate
sr = 2000
# sampling interval
ts = 1.0/sr
t = arange(0,1,ts)
x = sin(2*pi*5.5*t)
X = fft(x)
N = len(X)
n = arange(N)
print(12,n[-1])
T = N/sr
freq = n/T #=n/N*sr=n/n*sr
print(15,T)
print(10,len(X),len(t),t[-1],freq[-1])
plt.figure(figsize = (12, 6))
plt.subplot(121)
plt.plot(freq, abs(X), 'b') #, \
#markerfmt=" ", basefmt="-b")
plt.xlabel('Freq (Hz)')
plt.ylabel('FFT Amplitude |X(freq)|')
plt.xlim(0, 10)
plt.subplot(122)
plt.plot(t, ifft(X), 'r')
plt.xlabel('Time (s)')
plt.ylabel('Amplitude')
plt.tight_layout()
plt.show()
12 1999
15 1.0
10 2000 2000 0.9995 1999.0
/usr/local/lib/python3.7/dist-packages/matplotlib/cbook/__init__.py:1317: ComplexWarning: Casting complex values to real discards the imaginary part
return np.asarray(x, float)
[ ]:
#k1 = k-m
#m=k+1-
phase = pi*k1 -pi*k1/N
FFT padding
[ ]:
from matplotlib.backend_bases import ResizeEvent
# sampling rate
fs = 200 #(2kHz)
# sampling interval
ts = 1.0/fs
t_max = 1
T = arange(0,t_max,ts) #Time vector
n_samples = int(len(T)) #number samples
Freqs = arange(0,fs,fs/n_samples)
FFT, MAG, PHASE = None, None, None
resize=100
for f in [50.05]:
f1 = f
X = sin(2*pi*f1*T)
X.resize(fs*resize)
FFT = fft(X)
#FFT = DFT_new(X)
MAG = abs(FFT)
PHASE = angle(FFT)
n_fft_points = int(len(MAG)/2)
MAG = MAG[0:n_fft_points]
PHASE = PHASE[0:n_fft_points]
Npeaks=1
sorted_magnitude = sorted(MAG,reverse = True)
sorted_magnitude = sorted_magnitude[:Npeaks][0]
fpeak = list(MAG).index(sorted_magnitude) #for peak in sorted_magnitude][0]
fp = MAG[fpeak]
ph_p = PHASE[fpeak]/pi
fpeaks.append(fp)
print("FFT len",len(MAG))
print("Peak at:",fpeak/resize,f1)
error = (fpeak/resize-abs(f1))/abs(f1)
print(38,fpeak/resize-f1)
print(error)
print(f"MAG-N delta {error*100:.2g} %")
print(n_fft_points)
print("len Freqs",len(Freqs))
print("len MAG",len(MAG))
Freqs = arange(0,fs*1000,fs/n_samples)
plt.plot(Freqs[:n_fft_points],MAG,'b')
plt.xlabel('Freq (Hz)')
plt.ylabel('FFT Amplitude |X(freq)|')
plt.xlim(0,fpeak*2)
plt.show()
FFT len 10000
Peak at: 50.05 50.05
38 0.0
0.0
MAG-N delta 0 %
10000
len Freqs 200
len MAG 10000
SPECTROGRAM
FFT SPECTROGRAM
[ ]:
from numpy.fft import fft, ifft,fftfreq
from numpy import abs, angle, arange, dot, exp, sin, pi
import matplotlib.pyplot as plt
from numpy import exp
from scipy.signal import spectrogram
from scipy import signal
[ ]:
df_max = 0.7 # non-resolved
df_min = 0.8 # resolved
f0, df = 500, 2
f1, f2 = f0-df, f0+df
n_fft = 1000 #FFT points
fs= 2000 #sampling frequency
T = arange(0,n_fft/fs,1/fs)
# Nyquist
assert fs> max(f1,f2)*2
Y = sin(2*pi*f1*T) + sin(2*pi*f2*T)
FFT = fft(Y)
MAG = abs(FFT)
PHASE = angle(FFT)
n_fft_points = int(len(T)/2)
F = [fs*i/2/n_fft_points for i in range(n_fft_points)]
print(f1,f2,df)
MAG = MAG[0:n_fft_points]
PHASE = PHASE[0:n_fft_points]

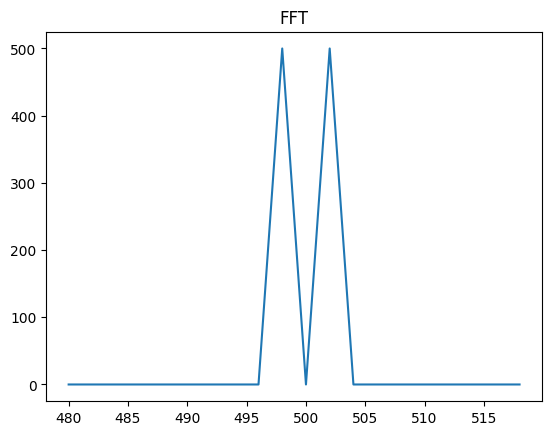

plt.title("FFT")
fmin, fmax = int((f0-20)/2), int((f0+20)/2)
plt.plot(F[fmin: fmax], MAG[fmin: fmax]) # [min, max],MAG[min, max])
498 502 2
[<matplotlib.lines.Line2D at 0x7fe04d947850>]
CROSS CORRELATION
works great when delta f > 1 frequency bin
[ ]:
## CROSS CORRELATION WORKS great down to 1 frequency bin but not below
FREQS = arange(498,502,fs/n_fft_points/33)
import numpy as np
def cross_corr(y1, y2):
"""Calculates the cross correlation and lags without normalization.
The definition of the discrete cross-correlation is in:
https://www.mathworks.com/help/matlab/ref/xcorr.html
Args:
y1, y2: Should have the same length.
Returns:
max_corr: Maximum correlation without normalization.
lag: The lag in terms of the index.
"""
if len(y1) != len(y2):
raise ValueError('The lengths of the inputs should be the same.')
y1_auto_corr = np.dot(y1, y1) / len(y1)
y2_auto_corr = np.dot(y2, y2) / len(y1)
corr = np.correlate(y1, y2, mode='same')
# The unbiased sample size is N - lag.
unbiased_sample_size = np.correlate(
np.ones(len(y1)), np.ones(len(y1)), mode='same')
corr = corr / unbiased_sample_size / np.sqrt(y1_auto_corr * y2_auto_corr)
shift = len(y1) // 2
max_corr = np.max(corr)
argmax_corr = np.argmax(corr)
return max_corr, argmax_corr - shift
CORRs = []
for f in FREQS:
SINE = sin(2*pi*f*T)
# CORR = [(SINE[i]*Y[i])**2 for i in range(len(T))]
# corr = sum(CORR)
# CORRs.append(corr)
max_corr, _ = cross_corr(Y,SINE)
CORRs.append(max_corr)

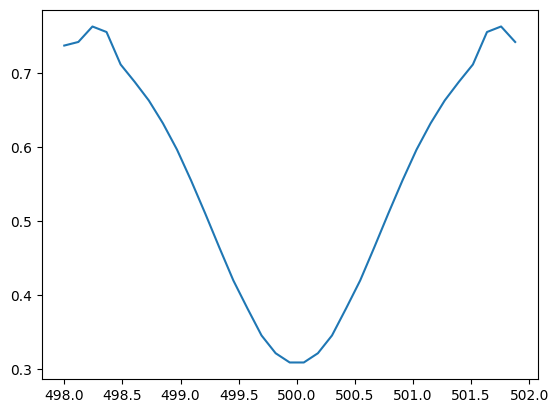

plt.plot(FREQS, CORRs)
[<matplotlib.lines.Line2D at 0x7fe04d8bc3d0>]
[ ]:
from numpy import angle, exp, pi
i = exp(1j*pi)
print(i)
print(angle(i))
(-1+1.2246467991473532e-16j)
3.141592653589793
