FMCW Radar 102 - CFAR
CFAR stands for Constant False Alarm Rate and is the generic name for detecting target in a noisy/ uncertain environment.
Goal:
Explicit in one single place code and maths needed to understand CFAR for FMCW radar.
Status:
this work book runs in any browser and correctly computes CFAR for a multi target in a AWGN noisy environment
Howto:
you can start with the maths or with the code, you should finish the otherway round and check they both match.
if needed check the introduction to Google Colab to run notebooks in your web browser here
Navigate to the cell
CFAR codeand execute itThen navigate to the cell
Visual CFAR experimentand run it a few times until youseemore peaks than you have in code (i.e. some noise spikes out)Then navigate to the cell
CFAR codeand run it, you should see the peaks highlighted.you can now change the pfa, training, guard values to see the impact on the CFAR output.
History:
2022-Dec-15: Clean-up to have MRE for CFAR as standalone cells
2022-Apr-28: creation
Next:
click to access other workbooks:
FMCW 102 - CFAR : CFAR or how to detect objects of interest from range FFT.
FMCW 103 - AoA : angle of arrival (CAPON vs Bartlett)
FMCW 104 - increased resolution vs FFT binincrease accuracy option compared to standard FFT.
Also available on github as gist for forking:
Related ressources:
Eq 6 and Eq 7 corrected for typo from 1
Possible addition:
https://citeseerx.ist.psu.edu/viewdoc/download?doi=10.1.1.634.6916&rep=rep1&type=pdf
https://www.riverpublishers.com/pdf/ebook/chapter/RP_9788793519138C07.pdf
mmWave code: c:\ti\mmwave_sdk_03_05_00_04:nbsphinx-math:packages\ti\alg\mmwavelib\src\detection\mmwavelib_cfarca.c
code seems to mostly compare cell value to background, no CFAR.
CFAR maths
At the high-level CFAR is about computing a threshold so that the probability of false positive is below a given threshold aka pfa.
Generic intro
A simplified way to look at it is to consider a AWGN where any threshold can be compared to the variance and yield a probability of false positive, see the quantile funciton of a gaussian.
Application to FMCW radar
To apply this to radar, one needs to consider if the noise is:
Gaussian
non-gaussian (and which type) …
Assuming here that the noise is gaussian, the Noise Floor NF needs to be estimated.
For this the average of the power in bins surounding the bin under test will be calculated.
To avoid biasing the average with spectrum leakage a certain number of guard bins are excluded from NF estimate.
Once the NF is estimated, a certain threshold is computed and if above the threshold then the bin is considered to hold a valid peak value.

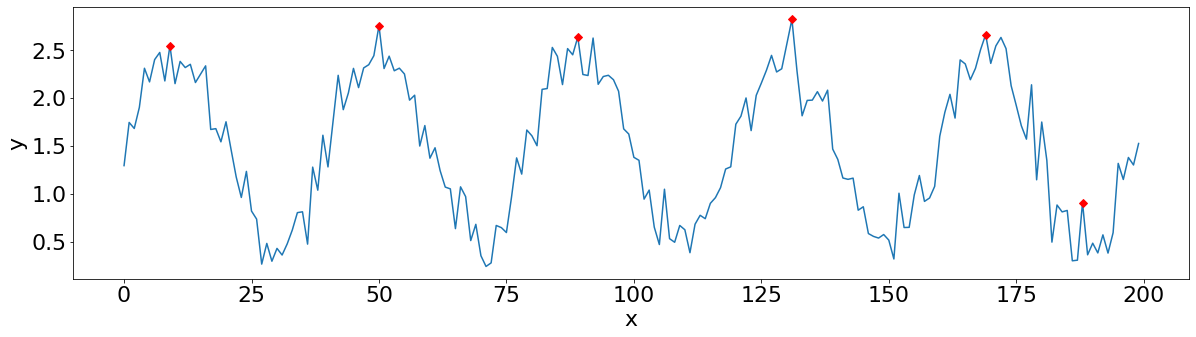

Illustration
Where:
$ P_{fa} $ is the probability false alarm
T CA-CFAR threshold
M length of train sequence
Which is equivalent to
CFAR code
[ ]:
# run this cell to do all imports and define the ca_cfar function
from numpy import angle, arange, abs, cos, pi, random
# from np.random import normal
from scipy.fft import fft
import matplotlib.pyplot as plt
from numpy import sqrt
def ca_cfar_new(X,count_train_cells = 100,count_guard_cells=1, Pfa=0.1,return_threshold = False):
""" Retuns indexs of peaks found via CA-CFAR
i.e Cell Averaging Constant False Alarm Rate algorithm
Parameters:
-----------
X: numpy array
signal whose peaks have to be detected and reported
count_train_cells: int
number of cells used to train CA-CFAR
count_guard_cells: int
number of cells guarding CUT against noise power calculation
Pfa: float
Probability of false alert, used to compute the variable threshold for peak
Returns:
--------
peak_locations: numpy array
list of indexes where CA-CFAR found a peak
"""
signal_length = X.size
M = count_train_cells
half_M = round(M / 2)
count_leading_guard_cells = round(count_guard_cells / 2)
half_window_size = half_M + count_leading_guard_cells
# compute power of signal
P = [x**2 for x in X]
#P = X #[x for x in X]
#T scaling factor for threshold
#from Eq 6, Eq 7 from [1]
#T = M*(Pfa**(-1/M) - 1)**M
T = M*(Pfa**(-1/M) - 1)
peak_locations = []
thresholds = [0]*(half_window_size)
for i in range(half_window_size,signal_length-half_window_size):
p_noise = np.sum(P[i-half_M:i+half_M+1])
p_noise -= np.sum(P[i-count_leading_guard_cells:i+count_leading_guard_cells+1])
p_noise = p_noise/M
threshold = T * p_noise
thresholds.append(sqrt(threshold))
if P[i] > threshold:
peak_locations.append(i)
peak_locations = np.array(peak_locations, dtype=int)
if return_threshold:
return np.array(thresholds + [0]*(half_window_size))
else:
return np.array(peak_locations)
Visual CFAR experiment
[ ]:
# run this cell to have an example FFT
# This code defines 2 sine waves in a noisy environment and plots it
# how easy is it after a few runs when noise peaks are high to see which is a
# peak and which is noise?
f0, f1 = 0.5e3, 3e3
fs = 10e3
n_samples = 1024
T = arange(0, n_samples*1/fs, 1/fs)
Y = cos(2*pi*(f0*T)) + cos(2*pi*f1*T) + random.normal(0,3,n_samples)
FT = fft(Y)
F = [i*fs/n_samples for i in range(len(T))]
F = np.array(F[0:int(n_samples/2)])
MAG = abs(FT[0:int(n_samples/2)])
plt.title("This is an FFT, how many peaks can we 'see'?")
plt.plot(F,MAG )
[<matplotlib.lines.Line2D at 0x7fe6891a7d30>]
CFAR code
[ ]:
# run this cell to see CFAR in action and how tweaking parameters changes output
# here we define the number of training cells
train = 20
# the number of guard cells
# which is to account for spectral leakage
# or if a bin has an adjacent bin with energy (because frequency is not perfectly in one bin)
guard = 1
# the proability of false error
# to be noted the lower the pfa, the higher the false negatives probability...
pfa = 0.0001
# get the index of the position of peaks
peak_idx = ca_cfar_new(MAG, train, guard, pfa)
# get the computed thresholds to be able to plot them
th = ca_cfar_new(MAG, train, guard, pfa, return_threshold = True)
# plot the FFT
plt.plot(F,MAG)
# mark the peaks
plt.plot(F[peak_idx], MAG[peak_idx], 'rD')
# show the thresholds computed (you can change, train, guard or pfa to see changes)
# lower # train cells will under-estimate the noise floor and will yield to more
# false positives
# higher pfa will also increase the number of peaks

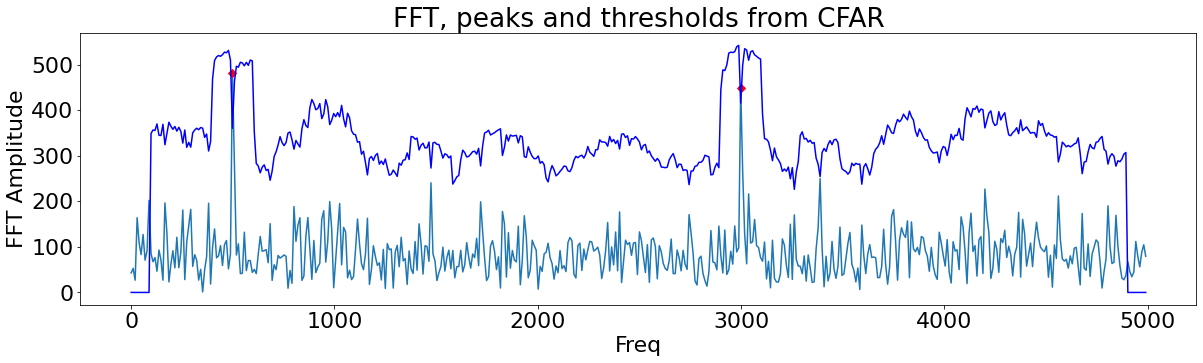

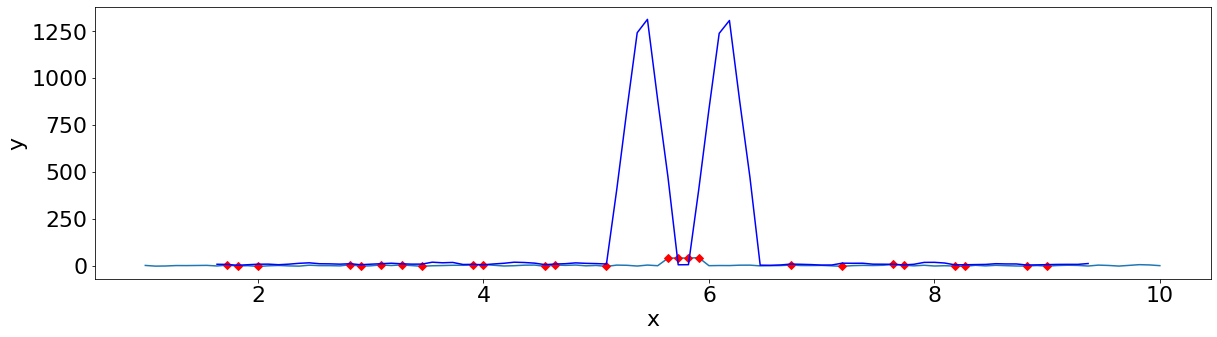

plt.title("FFT, peaks and thresholds from CFAR")
plt.plot(F,th,'b-')
plt.xlabel('Freq')
plt.ylabel('FFT Amplitude')
Text(0, 0.5, 'FFT Amplitude')
